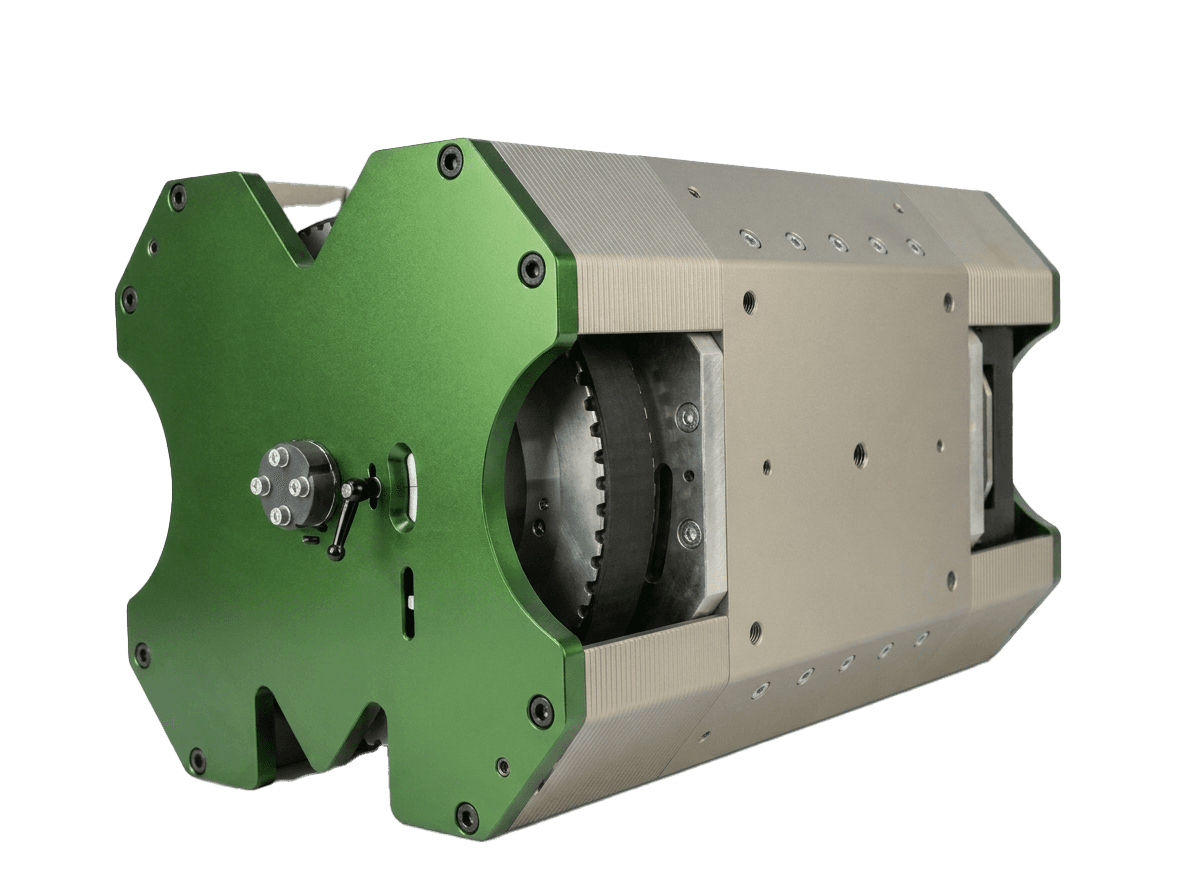

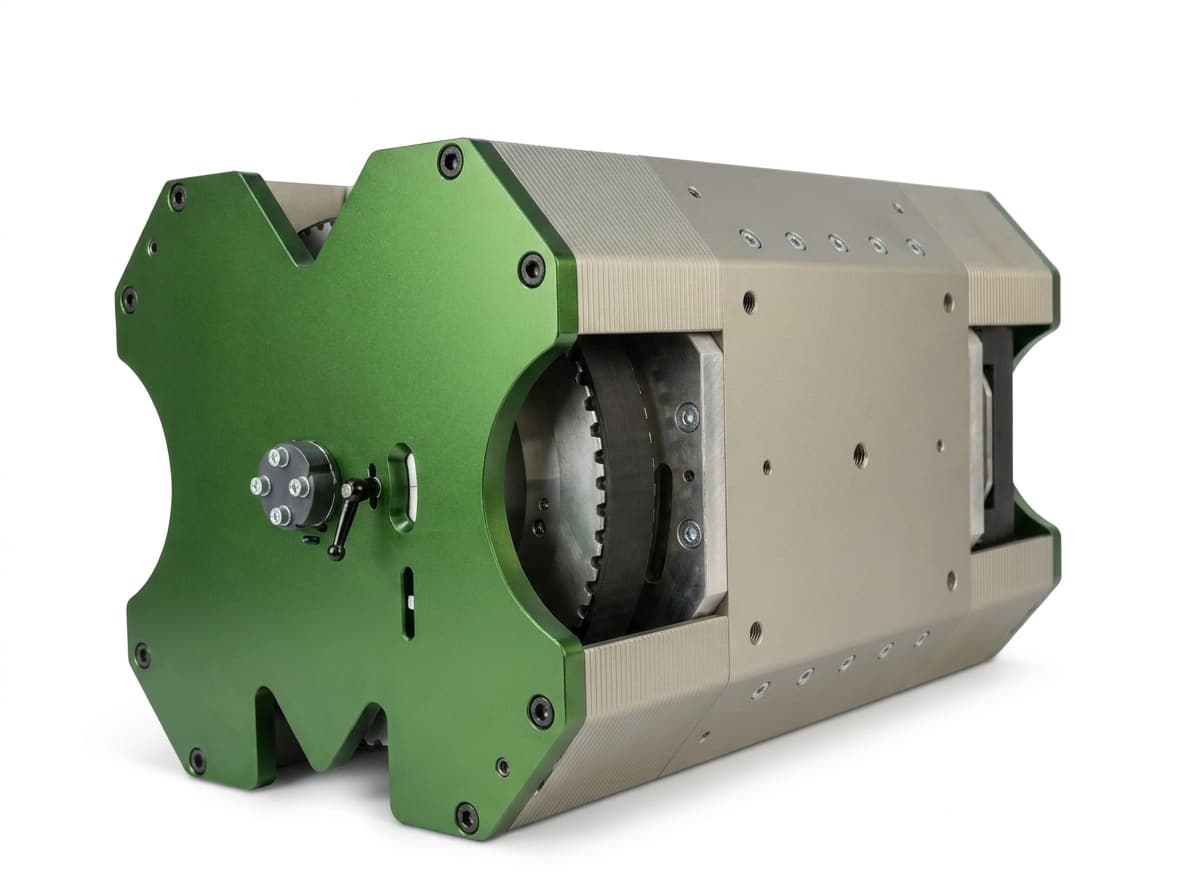

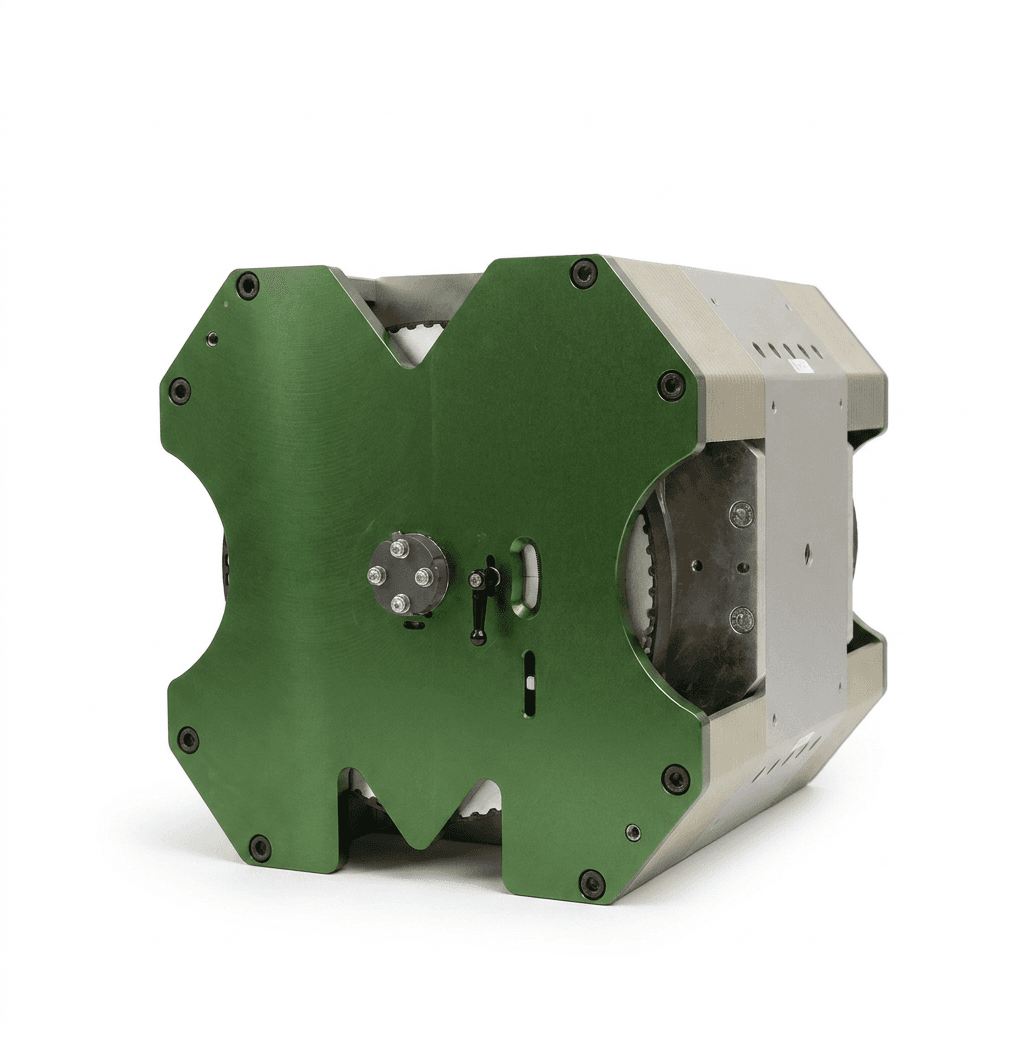

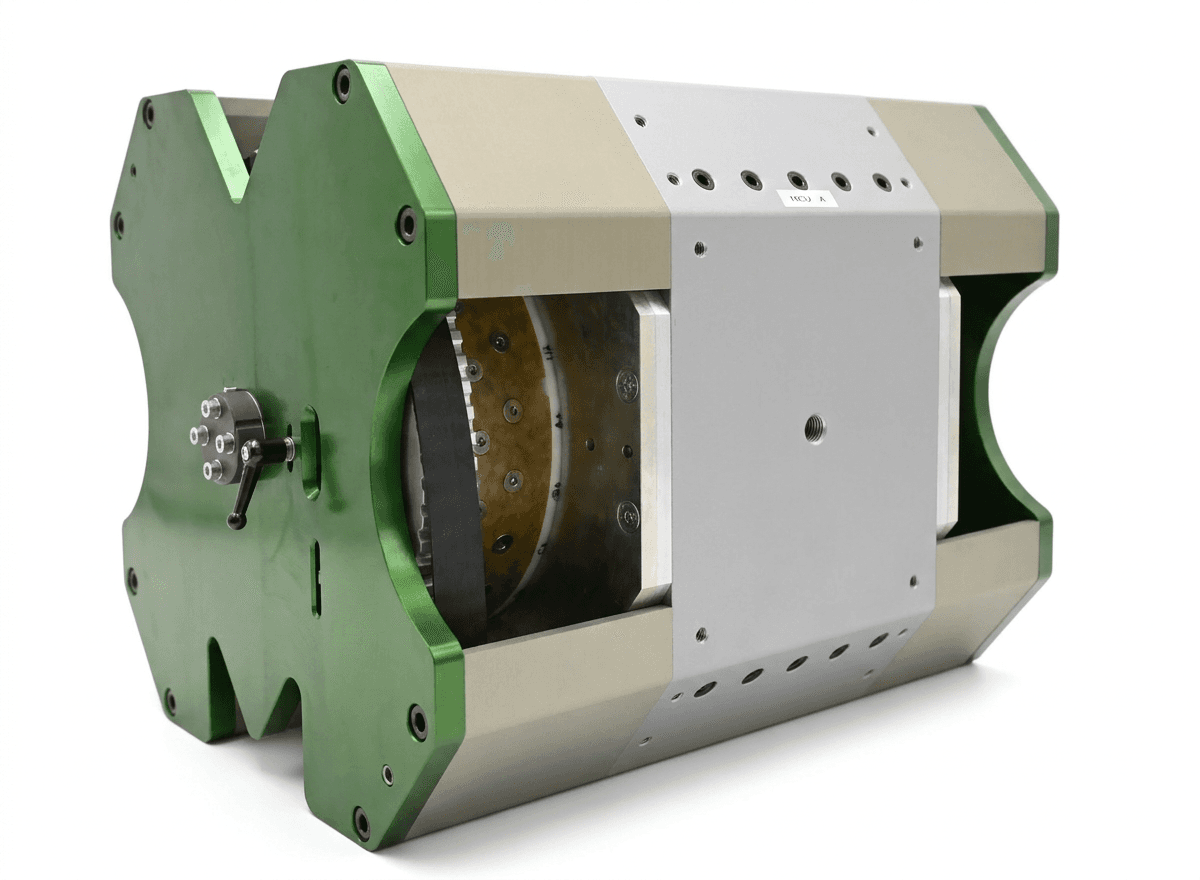

C500 Pro
Higher performance. Designed for industrial deployment.
Highlights
The Magnoric C500 Pro is the next step in Magnoric’s magnetocaloric platform, combining higher cooling capacity with improved energy efficiency.
Building on the C200 architecture, it introduces an optimised industrial design developed for more demanding applications and higher performance requirements.
Designed for commercial refrigeration and industrial process cooling, the C500 Pro brings magnetocaloric technology closer to series production and large-scale deployment.
Specifications
Cooling capacity
500 W @ ΔT = 17 K (20°C → 3°C)
Cooling outlet temperature
Typical: -2°C to 3°C – adaptable to customer requirements
Control mode
Boost mode (maximum cooling power), Regular (compromise cooling power/COP) and Eco (maximum COP)
Unit dimensions
380x380x580mm
Heat transfer fluid
Propylene glycol (freezing point -5°C), food-safe compatible fluid.
Electrical supply
230 V 50 Hz
Material compatibility
Compatible with a wide range of magnetocaloric materials: Gd, LaFeSi, MnFe, etc.
Unit Control
Cloud monitoring & control of the unit
Magnetic field strength
0.9 Tesla
Pressure drop
1.5 bar
Availability
Pre-series
Integration
Standalone MCU or integrated solution
