M MatTest
From material properties to system performance.
Highlights

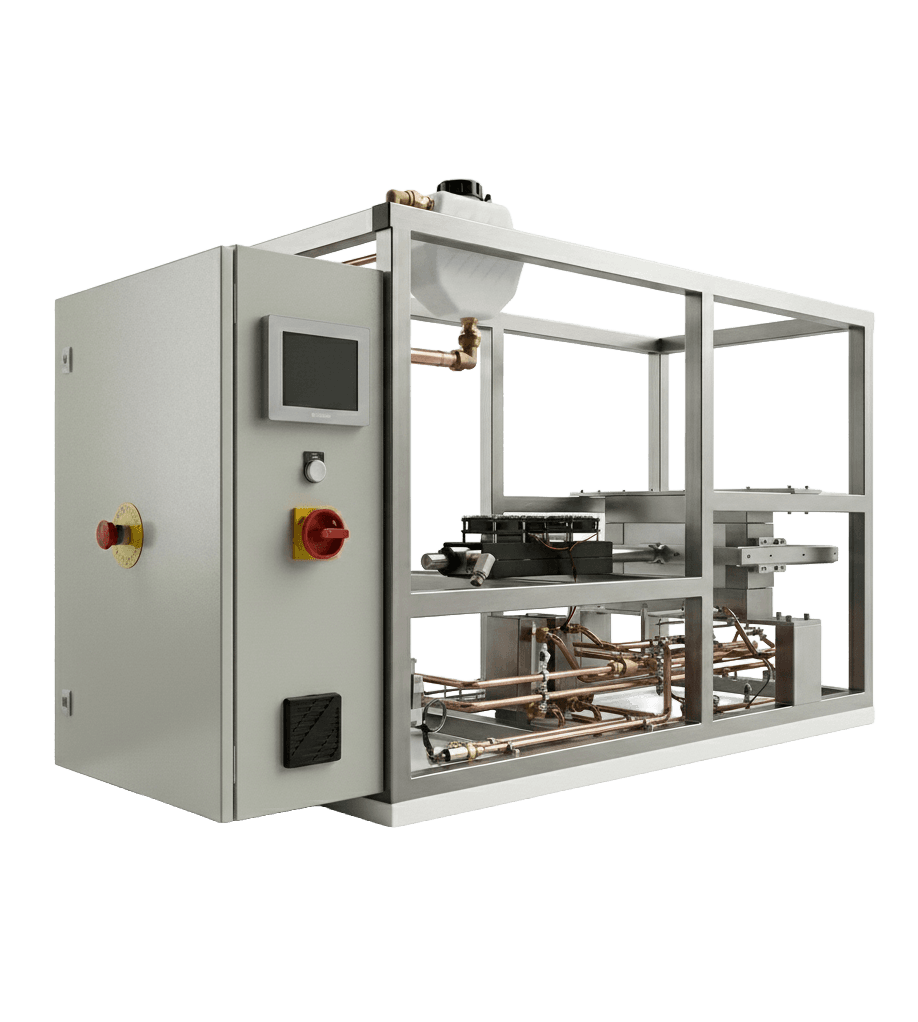

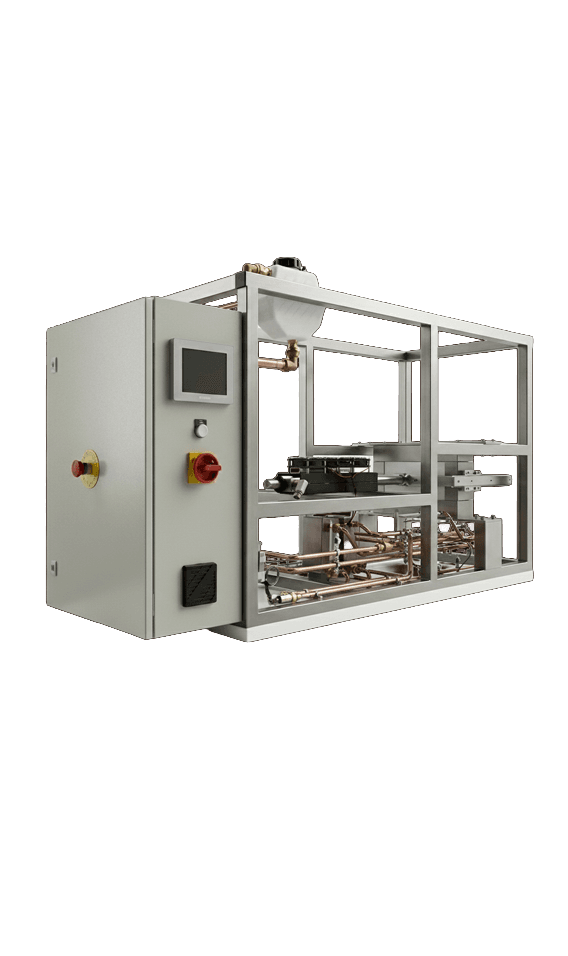

The Magnoric M MatTest is a dedicated magnetocaloric material testing platform, designed to evaluate materials directly under representative Active Magnetic Regenerator (AMR) operating conditions.
Unlike conventional material characterization, it measures the cooling performance delivered within an operating system, providing application-relevant data for material development and comparison.
Designed for universities, research institutes and industrial R&D teams, the M MatTest provides a repeatable testing environment to compare materials, optimise configurations and accelerate the development of next-generation magnetocaloric materials.
Available as a complete testing platform.
System Specifications
Source
High-performance permanent magnets
Maximum field intensity
0.77 T
Minimum airgap
35 mm
Cycling frequency
Up to 1.5 Hz
Field profile
Controlled, symmetrical cycling
Operating temperature range
-10 °C to +50 °C
Heat transfer fluid
Water or water-glycol mixture
Accepted formats
Plates, spheres, packed bed
Usable sample holder volume
62.4 cm³
AMR specifications
Max dimensions
120x26x21 mm
Accepted formats
Plates, blocks (laminated or printed), spheres
Material cascade
Gd, Er, La, Mn, Fe
Instrumentation and acquisition
Temperature sensors
High-precision thermocouples and T type probes
Software interface
Automated control and raw data export
Electrical supply
380 V
Dimensions
150 x 80 x 40 cm
Measured quantities
Adiabatic temperature change
Cooling power delivered
Fluid volume transferred and absolute pressure
Hot-side inlet temperature and cold-side outlet temperature
