R Pilot
Turning low-grade heat into electricity.
Highlights
R Pilot

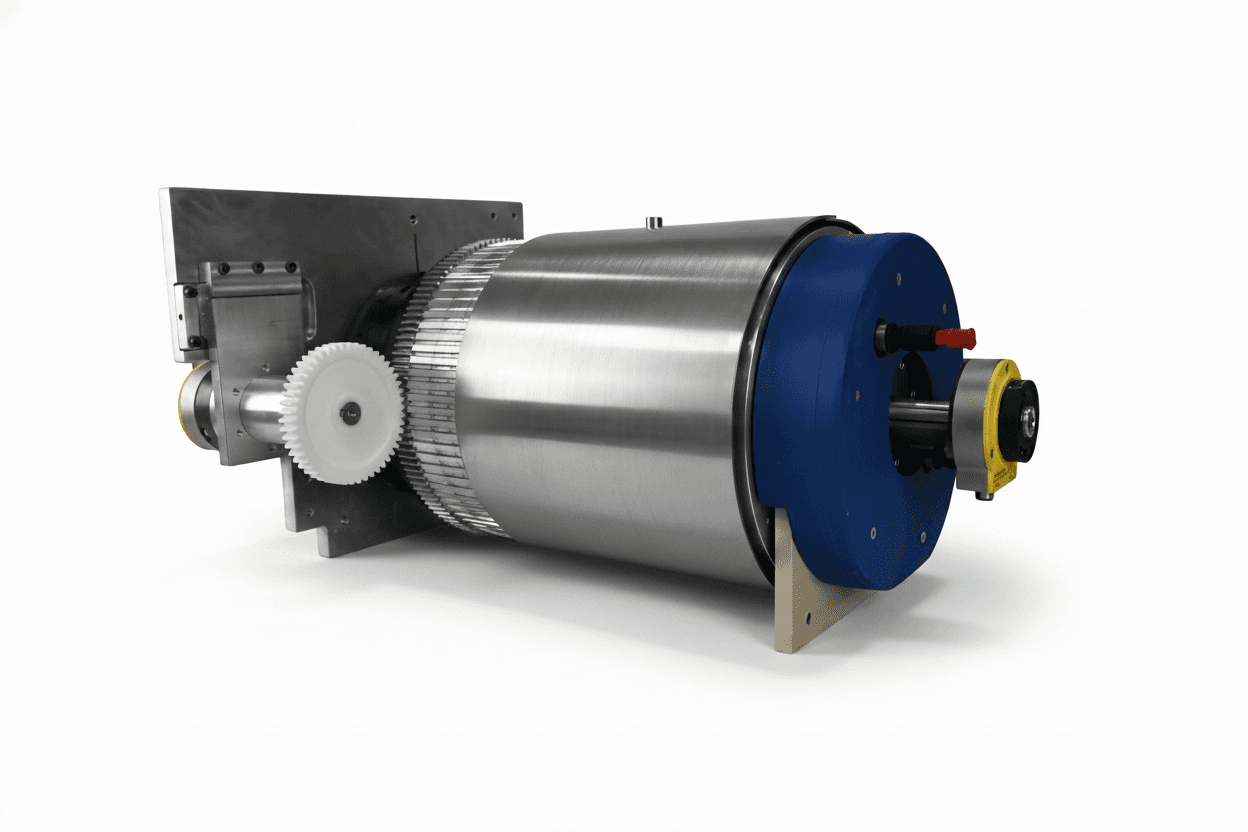

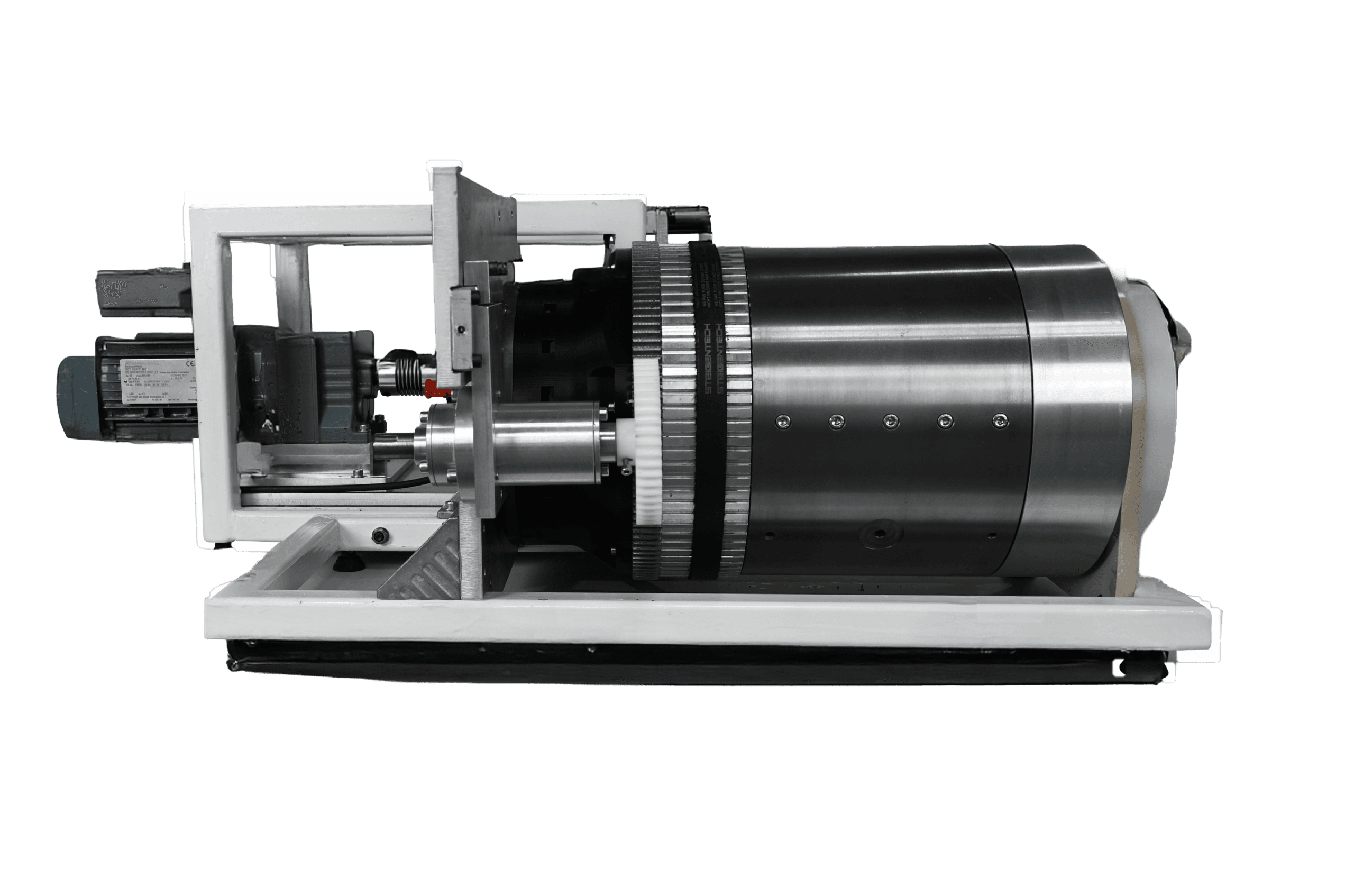

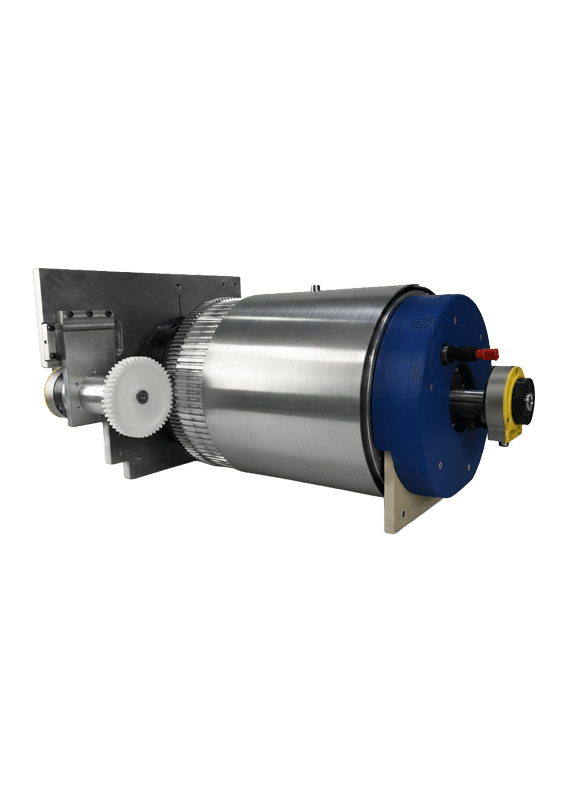

The Magnoric R Pilot is Magnoric’s first magnetocaloric waste heat recovery platform, designed to convert low-grade heat into electricity.
It targets heat sources below 100°C, opening new opportunities where conventional conversion technologies are often inefficient or unsuitable.
Designed as a flexible development and validation platform, the R Pilot enables Magnoric to validate the technology under operating conditions, optimise system performance and prepare its integration into future industrial waste heat recovery applications.
Specifications
Temperature range with Gd
-5°C to 25 °C
Temperature range with next gen materials
-20°C to 80°C
Pressure drop
1.9 bar
Magnetic field
0.7 T, NdFeB permanent magnets
Operating principle
Magnetocaloric thermodynamic cycle
Unit control
Cloud monitoring & control of the unit
Unit dimensions
483 mm length × Ø 266 mm
Heat transfer fluid
Propylene glycol (freezing point -5°C), food-safe compatible fluid
